• The tractor is equipped with an engine that meets the Chinese standards of Category III (analogous to Tier IIIa);

  • Dry main clutch;

  • The tractor is equipped with a gearbox with quick engagement clutches;

  • The undercarriage of the tractor is built on a semi-rigid suspension and can be made on a rubber tracked chassis;

  • The cab of a caterpillar tractor has an improved visibility and, in order to increase driver comfort, can be equipped with an air conditioning system, a heating system, and a dust filtering system.

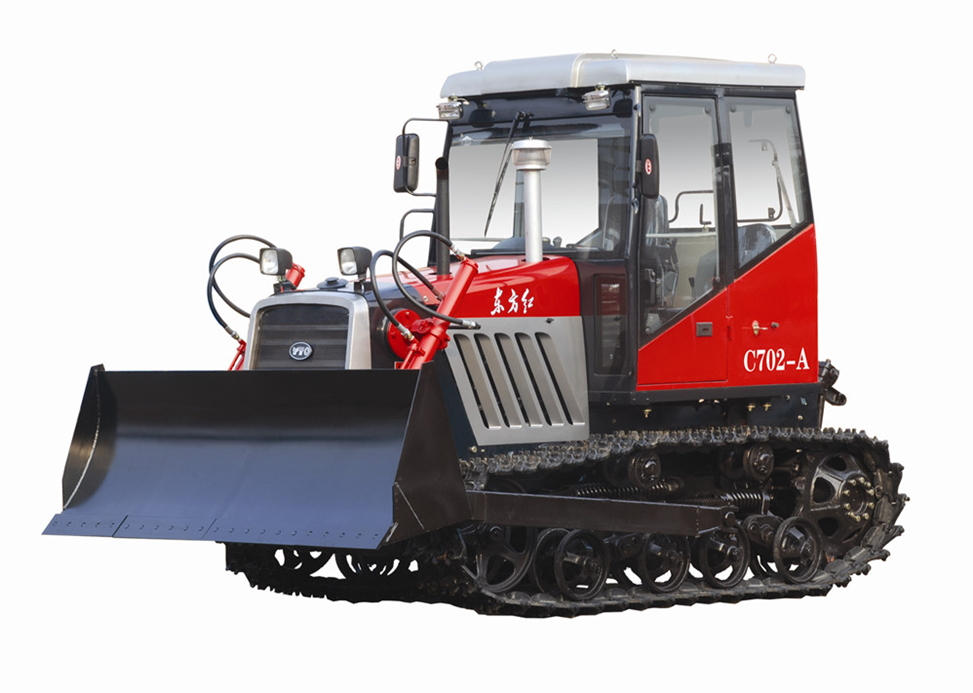

YTO-C702-A

Engine model

LR4B3-22

Engine's type

In-line, water-cooled, four-stroke, turbocharged

Rated power, (kW) / Speed, ​​(rpm)

51.5/2200

PTO power, (kW)

44

PTO rotation frequency, (rpm)

750

Overall dimensions
Length×Width×Height), (mm)

4870×2462×2766

Wheelbase, (mm)

1622

Minimum clearance,
(mm)

390

Minimum operating weight,
(kg)

6630 (with dozer blade)

Тrack clearance, (mm)

1435

Ground pressure, (kPa)

47.7 (with dozer blade)

Number of gears,

(F/R)

4F+2R

Speed ​​range (km/h),
(F/R)

3.67-9.03/3.51-5.59

Pulling force
(Swivel joint), (kN)

14
