• The tractor is equipped with a six-cylinder 160 hp engine. with a power factor of 10%. Engine complies with Chinese Category III regulations (similar to Tier IIIa);
  • Fuel tank with a capacity of 400 liters, provides a long operating time of the tractor without refueling;
  • The tractor is equipped with 3 or 4 pairs of hydraulic outputs and an electro-hydraulic linkage control system;
  • The rear track adjustment of the tractor is infinitely variable. The basic configuration of the tractor includes twin rear wheels;
  • The tractor is equipped with a hydraulically driven differential lock;
    Rear PTO of the tractor of two-speed independent type with electro-hydraulic control;
  • Wet clutch disc brakes provide maximum effective and safe braking;
    Front drive axle of a tractor manufactured by CARRARO;
  • Synchronized gearbox 12F + 4R provides quiet and smooth shifting and stable engine operation throughout the entire speed range;
  • In the basic configuration, the tractor cab has additional dust protection and is equipped with an air conditioner.

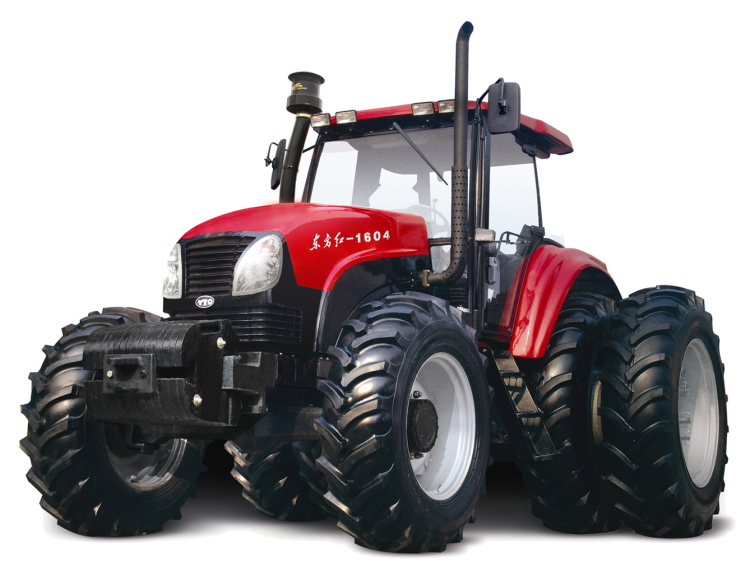

YTO-LX1604

Engine model

SC9D240G2

Engine's type

Six-cylinder, vertical, four-stroke, direct injection,

turbocharged and intercooled

Engine displacement, (l)

8.82

Rated power (kW) / Speed ​​(rpm)

147/2200

Drive type

4×4

Overall dimensions
Length×Width×Height), (mm)

5390×2696×3450

Wheelbase, (mm)

2848

Minimum clearance,
(mm)

459

Minimum operating weight,
(kg)

7115

Tyre size, front/back

14.9-28/18.4-38

Wheel track, front/back (mm)

1680-2176/1620-2200

Number of gears,

(F/R)

12/4

Speed ​​range (km/h),
(F/R)

2.25-29.06/4.25-11.47

Lifting force
 (610mm), (kN)

≥36

Pulling force
(Swivel joint), (kN)

57
